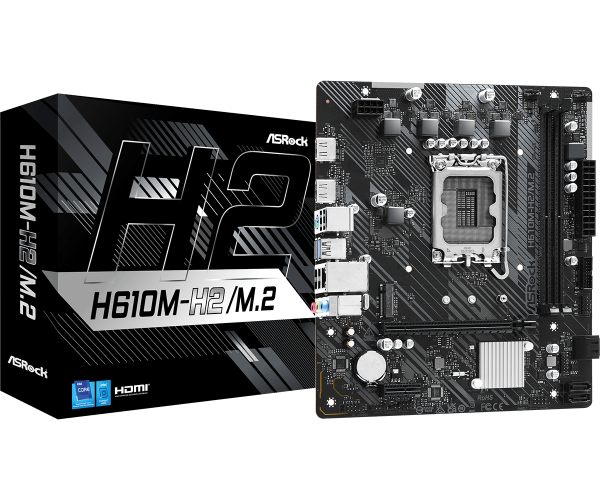

MB s1700 ASRock H610M-H2/M.2 D4

• Unique Feature
  Rock-Solid Durability
  - 3+1+1 Power Phase
  EZ Update
  - ASRock Auto Driver Installer
• CPU
  - Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
  - Supports Intel^® Hybrid Technology
  - Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  - Intel^® H610
• Memory
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 non-ECC, un-buffered memory up to 3200
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - Intel^® Xe Graphics Architecture (Gen 12)
  - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz



  * Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Realtek 8111H
• Slots
  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 3.0 x1 Slot (PCIE2)*



  * Supports NVMe SSD as boot disks
• Storage
  Chipset:
  - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  - 4 x SATA3 6.0 Gb/s Connectors



  * Supports NVMe SSD as boot disks
• USB
  - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  - 6 x USB 2.0 (4 Rear, 2 Front)



  * All USB ports support ESD Protection
• Connector
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)



  * CPU_FAN1 supports the fan power up to 1A (12W).
  ** CHA_FAN1/WP supports the fan power up to 2A (24W).
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 1 x PS/2 Mouse/Keyboard Port
  - 2 x HDMI Ports
  - 2 x USB 3.2 Gen1 Type-A Ports
  - 4 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 1 x Screw for M.2 Socket
• Form Factor
  - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• OS
  - Microsoft Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
